B-0290-CVH: Big-Flo Mixing Faucet, 8" Wall Mount, 12" Swing Nozzle, 00LL Inlet Elbows, Check Valves

Name: Big-Flo Mixing Faucet, 8" Wall Mount, 12" Swing Nozzle, 00LL Inlet Elbows, Check Valves
Brand: T&S Brass
Price: 864.50 USD
Availability: InStock

share this page Where to Buy

List Price

$864.50

8" wall mount large flow mixing faucet with polished chrome plated brass body, 12" swing nozzle with plain end outlet, compression spindles, 4-arm handles, 3/4" NPT female inlets, 3/4" NPT female short inletelbows and 3/4" female check valves. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.

Nozzle Flow: Nozzle Flow: 44.27 GPM (167.56 L/min)
Pressure Max: Pressure Max: 125 psi (8.62 bar)
Pressure Min: Pressure Min: 20 psi (1.38 bar)
Temperature Max: Temperature Max: 140 F (60℃)
Temperature Min: Temperature Min: 40 F (4.44℃)

Body: 8 in Centers (203.2 mm)
Body Mount: Wall
Cartridge-Spindle: Compression
Feature: Big-Flo
Feature: Check Valve
Handle: 4-Arm (Cross)
Inlet: 3/4 in NPT Female
Inlet: Adjustable Centers
Inlet: Inlet Elbow
Material: Brass Construction
Nozzle: 12 in (304.8 mm)
Nozzle: Nozzle
Nozzle: Swivel
Nozzle Flow: 44.27 GPM (167.56 L/min)
Nozzle Outlet Type: Plain End
Pressure Max: Pressure Max: 125 psi (8.62 bar)
Pressure Min: Pressure Min: 20 psi (1.38 bar)
Temperature Max: Temperature Max: 140 F (60℃)
Temperature Min: Temperature Min: 40 F (4.44℃)

12" Big-Flo plain end swing nozzle
3/4" NPT female check valves to prevent the cross flow of water
3/4" NPT female eccentric flanged inlets w/ 2" flanges
3/4" NPT female short inlet elbows
4-arm handles w/ color coded indexes
8" wall mount Big-Flo mixing faucet w/ polished chrome plated brass body
Adjustable centers from 7 3/4" to 8 1/4"
Big-Flo compression spindles
Lock washer provided for rigid application
Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles

ASME A112.18.1 / CSA B125.1
Buy American Act (BAA)
Low Lead Content (0.25% Max)
NSF/ANSI 372 (Lead Content)
NSF/ANSI/CAN 61 Q≤1

Box Dimensions: 3.75 x 10.25 x 15.44
Weight: 9.36 lbs (4.25 kg)
UPC: 671262764346

California Prop #65 Warning

California Prop #65 Warning

WARNING

California Proposition 65

WARNING: This product can expose you to chemicals including Lead, Chromium (hexavalent compounds) and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm.

For more information, please go to www.P65Warnings.ca.gov.

Related Literature

downloads

- Spec Drawings/Parts Explosion
Installation Instructions
- Kettle & Pot Sink Faucet
- Submittal
Warranty: One Year (Limited)

Replacement Parts Parts Explosion

001193-19NS
Press-In Index, Red, T&S Logo click for details
000925-45
Handle Screw, SS Pan Head click for details
002521-45NS
4-Arm (Cross-Arm) Kitchen/Lab Handle, Chrome-Plated (New-Style) click for details
006482-40NS
B-0290 RH Spindle Assembly (Big-Flo) New Style click for details
000764-20
Removable Seats for Big-Flo (Old & New Style) click for details
114X
Big-Flo 12" Swing Nozzle click for details
000847-20
Swivel Piece, B-0290 click for details
001068-45
Nitrile O-Ring, .862 ID x .103 Thick click for details
016807-45
BIG-FLO EasyInstall SS Serrated Lock Washer click for details
018506-19NS
Press-In Index, Medium-Blue, T&S Logo click for details
00LL
3/4" NPT Inlet Elbow (Male x Female) Big-Flo click for details
000971-45
Lock Nut, 3/4-14 NPSM Female (Unplated Brass) click for details
001005-45
Brass Washer, 1-5/8" OD x 1-1/16" ID x 0.105" Thick click for details
00BB
3/4" NPT Female Eccentric Flanged Inlet click for details
001019-45
Coupling Nut Washer click for details

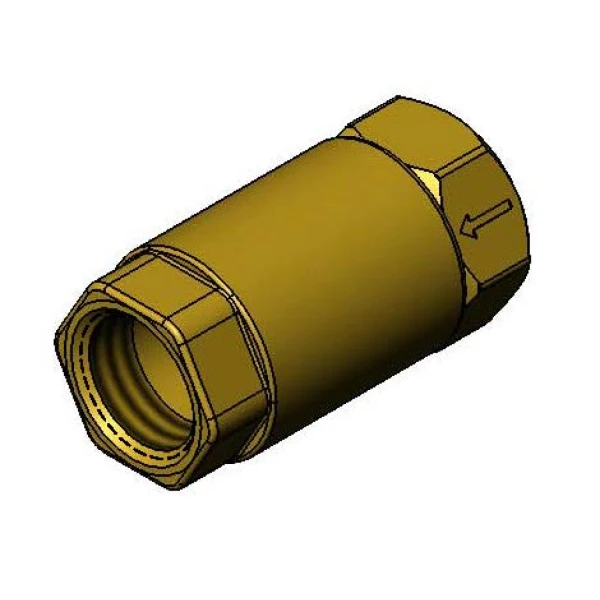

B-CVH3-4
Check Valve, 3/4" NPT Female, Horizontal or Vertical (Identical to B-CVV3-4) click for details
