B-1029-PA: Concealed Straight Valve, Slow Self-Closing, Pivot Action Metering

Name: Concealed Straight Valve, Slow Self-Closing, Pivot Action Metering
Brand: T&S Brass
Price: 426.50 USD
Availability: InStock

share this page Where to Buy

List Price

$426.50

Concealed straight single valve with brass body, polished chrome plated brass adjustable wall flange and sleeve,1/2" NPT female outlet, pivot action metering cartridge, blank pivot action handle and 1/2" NPT female inlet. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372. Meets ADA ANSI/ICC A117.1 requirements

Nozzle Flow: Nozzle Flow: 2.9 GPM (10.98 L/min)
Pressure Max: Pressure Max: 125 psi (8.62 bar)
Pressure Min: Pressure Min: 20 psi (1.38 bar)
Temperature Max: Temperature Max: 140 F (60℃)
Temperature Min: Temperature Min: 40 F (4.44℃)

Body: Concealed
Body Mount: Wall
Cartridge-Spindle: Metering
Handle: Pivot Action Metering
Material: Brass Construction
Nozzle Flow: 2.9 GPM (10.98 L/min)
Pressure Max: Pressure Max: 125 psi (8.62 bar)
Pressure Min: Pressure Min: 20 psi (1.38 bar)
Temperature Max: Temperature Max: 140 F (60℃)
Temperature Min: Temperature Min: 40 F (4.44℃)

1/2" NPT female inlet with external thread for optional union coupling connection
1/2" NPT female outlet
2 3/16" polished chrome plated brass adjustable wall flange and sleeve
Adjustable metering cycle, 10 to 30 seconds
Blank pivot action handle with vandal resistant screw
Concealed straight single valve with brass body
Material: Brass valve body, polished chrome plated brass adjustable wall flange & sleeve, and chrome plated metal handle
Metering cartridge

ASME A112.18.1 / CSA B125.1
Buy American Act (BAA)
Low Lead Content (0.25% Max)
NSF/ANSI 372 (Lead Content)
NSF/ANSI/CAN 61 Q≤1

Box Dimensions: 3.50 x 8.50 x 9.50
Weight: 3.30 lbs (1.50 kg)
UPC: 671262688598

Patent: 5655748
Country Of Origin: USA
California Prop #65 Warning

California Prop #65 Warning

WARNING

California Proposition 65

WARNING: This product can expose you to chemicals including Lead, Chromium (hexavalent compounds) and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm.

For more information, please go to www.P65Warnings.ca.gov.

Related Literature

downloads

- Spec Drawings/Parts Explosion
Installation Instructions
- Metering Barrel Assembly
- Submittal
Warranty: One Year (Limited)

Replacement Parts Parts Explosion

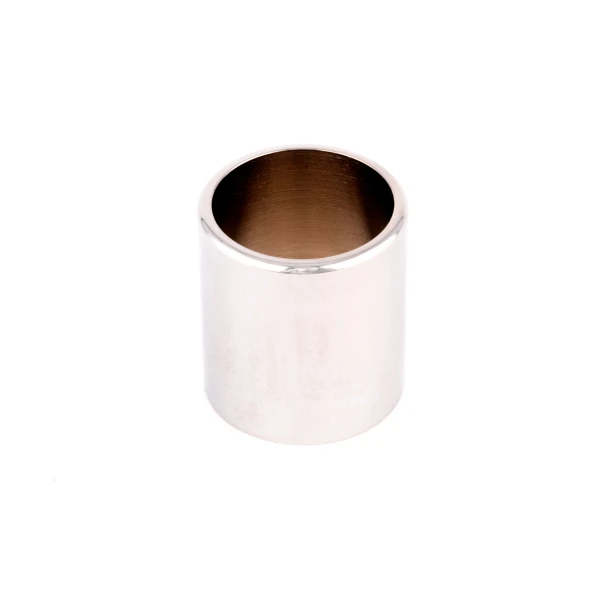

151F
B-1020 Escutcheon Tube (Plated) click for details
001501-40
Escutcheon, B-1020 By-Pass Valve (Plated) click for details
150F
Set Screw, #8-32UN x 3/16" Long, Cup Point click for details
238A-PA
Pivot Action Metering Cartridge w/ Retaining Nut click for details
PA-B
Metering Pivot-Action Handle (Blank) w/ Retaining Nut & Spanner Bit click for details
PA-N
Retaining Nut For Pivot Action (Pa Type) Metering Cartridge Handles click for details
238AB-PA
238A Metering Cartridge w/ (Blank) Pivot Action Handle click for details
