B-0175-01

Spray Assembly, Wall Mount Base, 8" Centers, 8" Add-On Faucet, Angled Spray Valve


List Price $1,225.00

8" wall mount mixing faucet with polished chrome plated brass body, add-on faucet with compression cartridge and lever handle, 8" swing nozzle with stream regulator outlet, 96" flexible stainless steel hose withheat resistant handle, 90deg swivel adapter arm, quick disconnect, vacuum breaker, 1.15 GPM angled spray valve, compression cartridges with spring checks, lever handles,1/2" NPT female inlets and hose hanger hook. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. 2019 DOE PRSV - Class II compliant.

  • Pressure Max: 125 psi (8.62 bar)

  • Pressure Min: 20 psi (1.38 bar)

  • Temperature Max: 140 F (60℃)

  • Temperature Min: 40 F (4.44℃)

B-0230-KIT

  • Install Kit
  • List Price: $78.80
See full details
Replacement Parts    Parts Explosion
B-0107-035 Quick View
B-0107-035
Spray Valve with Spray Face @ 35 Degree...
click for details

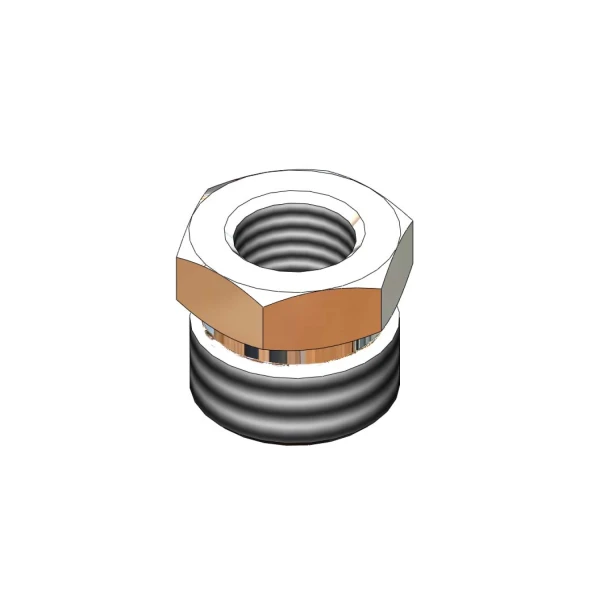

052A Quick View
052A
Adapter, 1/4" NPT Female x 3/4-14UN Male, Chrome-Plated...
click for details
B-0452 Quick View
B-0452
SS Quick Disconnect, 3/8"NPT Male x 1/4"NPT Male
click for details
B-0970-FE Quick View
B-0970-FE
Vacuum Breaker, 3/8"NPT Inlet & Outlet, Dual-Check DuCV,...
click for details
053A Quick View
053A
Adapter: 3/8" NPT Male x 3/4-14UN Male (Plated)
click for details
034A Quick View
034A
Assembly, 90 Degree Swivel to Hose Thread Adapter
click for details
009538-45 Quick View
009538-45
Split Swivel Washer (Delrin) Identical to 001028-45
click for details
B-0412 Quick View
B-0412
Adapter, Rigid-to-Swivel Adapter (Chrome-Plated)
click for details
B-0155-LNEZ Quick View
B-0155-LNEZ
Easy-Install Add-On Faucet, QT Eterna & Lever Handle
click for details
EZ-K Quick View
EZ-K
T&S EasyInstall Kit: Swivel Nut, Bushing, O-Ring, Lock...
click for details
014200-45 Quick View
014200-45
EasyInstall S'Steel Lock Washer (Swivel/Rigid)
click for details
002711-40NS Quick View
002711-40NS
Eterna Cartridge w/ Spring Check, LTC (Cold), Lever...
click for details
012442-40NS Quick View
012442-40NS
Eterna Cartridge w/ Spring Check, Less Handle, LTC...
click for details
002712-40NS Quick View
002712-40NS
Eterna Cartridge w/ Spring Check, Right Hand (Hot),...
click for details
012443-40NS Quick View
012443-40NS
Eterna Cartridge w/ Spring Check, Less Handle, RTC...
click for details
B-PT Quick View
B-PT
Stream Regulator Outlet, 55/64-27 UN Female Threads (Series...
click for details
