B-2892: Pot & Kettle Filler, Wall Mount, 8" Centers, ASSE-1056 VB, Squeeze Valve & Hook Nozzle Continuous Pressure B-0963 VB

Name: Pot & Kettle Filler, Wall Mount, 8" Centers, ASSE-1056 VB, Squeeze Valve & Hook Nozzle Continuous Pressure B-0963 VB
Brand: T&S Brass
Price: 1507.00 USD
Availability: InStock

share this page Where to Buy

List Price

$1,507.00

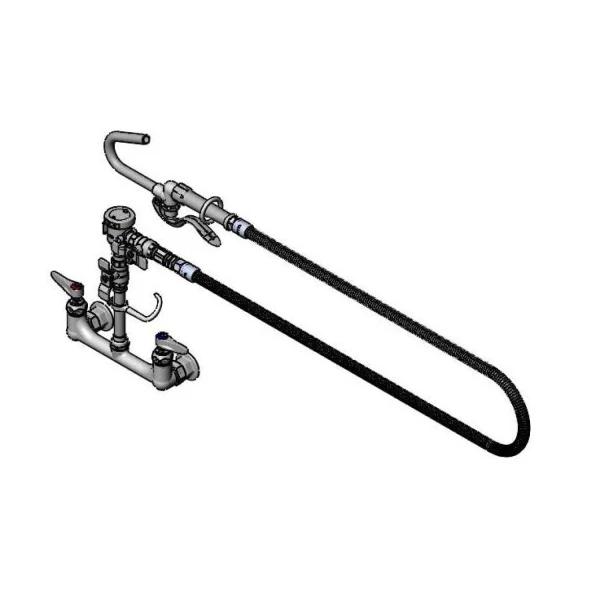

8" wall mount mixing faucet with polished chrome plated brass body, compression cartridges with spring checks, lever handles, 5" riser, continuous pressure vacuum breaker, 68" flexible stainless steel hose with heat resistant handle, self-closing squeeze valve with hook nozzle and 1/2" NPT female inlets. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372 and ASSE 1056.

Pressure Max: Pressure Max: 125 psi (8.62 bar)
Pressure Min: Pressure Min: 20 psi (1.38 bar)
Spray Valve Flow: Spray Valve Flow: 5.27 GPM (19.95 L/min)
Temperature Max: Temperature Max: 140 F (60℃)
Temperature Min: Temperature Min: 40 F (4.44℃)

B-0230-KIT

Install Kit
List Price: $75.00

See full details

Body: 8 in Centers (203.2 mm)
Body Mount: Wall
Cartridge-Spindle: 1/4 Turn Compression
Feature: Continuous Pressure VB
Feature: Spring Check
Handle: Lever
Inlet: 1/2 in NPT Female
Inlet: Adjustable Centers
Material: Brass Construction
Pressure Max: Pressure Max: 125 psi (8.62 bar)
Pressure Min: Pressure Min: 20 psi (1.38 bar)
Spray Valve: Hook Nozzle
Spray Valve: Plain-End Hook Nozzle
Spray Valve Flow: Spray Valve Flow: 5.27 GPM (19.95 L/min)
Temperature Max: Temperature Max: 140 F (60℃)
Temperature Min: Temperature Min: 40 F (4.44℃)

1/2" NPT female eccentric inlets with 2" flanges
68" flexible stainless steel hose w/ heat resistant gray handle
8" wall mount mixing faucet w/ polished chrome plated brass body
Adjustable centers from 7 3/4" to 8 1/4"
Continuous pressure vacuum breaker
Lever handles w/ color coded indexes
Material: Polished chrome plated brass bodies & vacuum breaker, stainless steel hose, and chrome plated metal handles
Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
Self-closing squeeze valve w/ hook nozzle

ASME A112.18.1 / CSA B125.1
Buy American Act (BAA)
Low Lead Content (0.25% Max)
NSF/ANSI 372 (Lead Content)
NSF/ANSI/CAN 61 Q≤1

Box Dimensions: 3.88 x 12.00 x 27.50
Weight: 10.00 lbs (4.54 kg)
UPC: 671262125925

ASSE 1056

ASSE 1056

ASSE 1056
Country Of Origin: USA
California Prop #65 Warning

California Prop #65 Warning

WARNING

California Proposition 65

WARNING: This product can expose you to chemicals including Lead, Chromium (hexavalent compounds) and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm.

For more information, please go to www.P65Warnings.ca.gov.

Related Literature

downloads

- Spec Drawings/Parts Explosion
Installation Instructions
- Kettle & Pot Filler
- Continuous Pressure Vacuum Breaker
- Submittal
Warranty: One Year (Limited)

Accessories

Replacement Parts Parts Explosion

002712-40NS
Eterna Cartridge w/ Spring Check, Right Hand (Hot), Lever Handle, Screw & Red Index Button "New-Style" click for details
012443-40NS
Eterna Cartridge w/ Spring Check, Less Handle, RTC (HOT) New-Style click for details
000925-45
Handle Screw, SS Pan Head click for details
001193-19NS
Press-In Index, Red, T&S Logo click for details
000361-40
Nipple/Riser, 3/8" NPT x 5" Long (Chrome-Plated) click for details
004R
Finger Hook Assembly click for details
001359-40
1/2"NPT Male x 3/8"NPT Female Hex Bushing Chrome-Plated Brass click for details
B-0963
Vacuum Breaker, 1/2"NPT Inlet-Outlet, Continuous Pressure, Spill-Resistant, Field-Testable ASSE 1056 Certified (SVB) click for details
002851-40
Hook Nozzle and Self-Closing Valve (Gray) click for details
010476-45
Hose & Spray Valve Washer #27 Washer click for details
000907-45
Spray Valve Hold Down Ring click for details
B-0068-H
Hose, 68" Flexible Stainless Steel (Gray Handle) click for details
EZ-K
T&S EasyInstall Kit: Swivel Nut, Bushing, O-Ring, Lock Washer (Not Designed for Equip PRUs) click for details
001065-45
O-Ring, Nitrile, Size 2-112 click for details
014200-45
EasyInstall S'Steel Lock Washer (Swivel/Rigid) click for details
018506-19NS
Press-In Index, Medium-Blue, T&S Logo click for details
001638-45NS
Lever Handle, Blank (New Style) click for details
012442-40NS
Eterna Cartridge w/ Spring Check, Less Handle, LTC (COLD) New-Style click for details
002711-40NS
Eterna Cartridge w/ Spring Check, LTC (Cold), Lever Handle, Screw & Blue Index Button "New-Style" click for details
00AA
1/2" NPT Female Eccentric Flanged Inlet click for details
001019-45
Coupling Nut Washer click for details
055A
1/2"NPT Male x 3/4-14UN Male Adapter click for details
