MV-0771-12N-BVT: 3/4" Washdown Station w/ Ball Valves, Hose Swivel, Thermometer, Hose Rack

Name: 3/4" Washdown Station w/ Ball Valves, Hose Swivel, Thermometer, Hose Rack
Brand: T&S Brass
Price: 1348.00 USD
Availability: InStock

share this page Where to Buy

List Price

$1,348.00

Washdown station w/ 3/4" brass mixing valve, ball valves, check valves, thermometer, hose swivel & hose rack.

Pressure Max: Pressure Max: 125 psi (8.62 bar)
Pressure Min: Pressure Min: 20 psi (1.38 bar)
Temperature Max: Temperature Max: 200 F (93.33℃)
Temperature Min: Temperature Min: 40 F (4.44℃)

Feature: Check Valve
Material: Brass Construction
Pressure Max: Pressure Max: 125 psi (8.62 bar)
Pressure Min: Pressure Min: 20 psi (1.38 bar)
Temperature Max: Temperature Max: 200 F (93.33℃)
Temperature Min: Temperature Min: 40 F (4.44℃)

3/4" check valves to prevent cross flow of water
3/4" globe valves w/ color coded handles
3/4" hose swivel
Brass thermometer tee
Material: Brass tee, stainless steel thermometer
Stainless steel hose rack w/ mounting hardware
Stainless steel thermometer, temperature range 0 F - 200 F

Buy American Act (BAA)
NSF Exempt

Box Dimensions: 34.75 x 14.88 x 11.63
Weight: 19.20 lbs (8.71 kg)
UPC: 671262718189

Country Of Origin: USA
California Prop #65 Warning

California Prop #65 Warning

WARNING

California Proposition 65

WARNING: This product can expose you to chemicals including Lead, Chromium (hexavalent compounds) and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm.

For more information, please go to www.P65Warnings.ca.gov.

Related Literature

downloads

Replacement Parts Parts Explosion

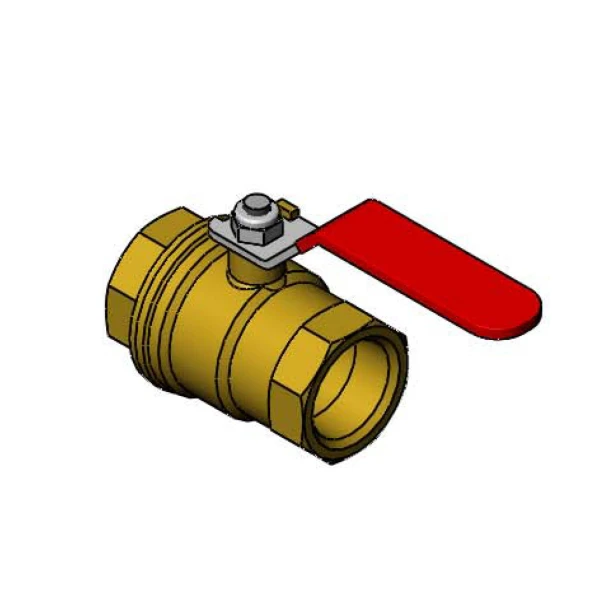

017487-45R
Ball Valve, 3/4 Female NPT, Brass, Zinc Plated Red Coated Lever Handle click for details

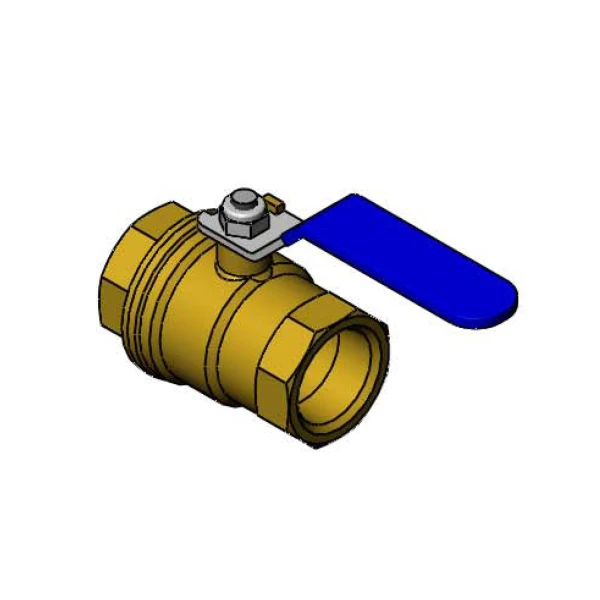

017487-45B
Ball Valve, 3/4 Female NPT, Brass, Zinc Plated Blue Coated Lever Handle click for details
B-CVH3-4
Check Valve, 3/4" NPT Female, Horizontal or Vertical (Identical to B-CVV3-4) click for details
006650-20
Union, 3/4" NPT Female, Brass (Unplated) click for details
006510-20
Mixing Valve Diffuser click for details
006653-45
Outlet Nipple Gasket click for details
015456-20
Outlet Nipple (Unplated) click for details
003799-45
Thermometer, 0-200F w/ T&S Logo click for details
006509-25
MV-0771 Short Mounting Spacer, Plated Brass, 1-1/2" OAL click for details
005266-20
3/4" WASHDOWN SWIVEL & THERMO-TEE (UNPLATED) click for details
002970-45
Hose Bracket & Mounting Hardware, S'Steel (Stainless Steel Hose Rack) click for details
002721-45
O-Ring for Big Flow Series click for details
