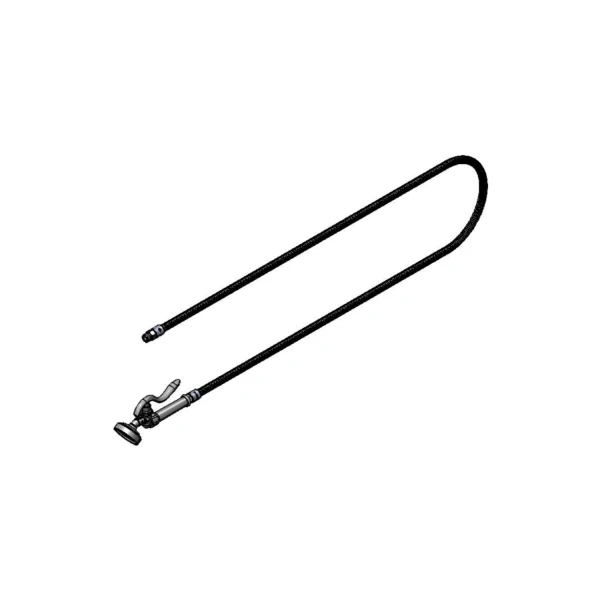

B-0952: 96" 软管和角度喷雾器

B-0952 Med Image

1.15 GPM 角形喷淋阀，配有抛光镀铬黄铜阀体、96" 柔性不锈钢软管、耐热手柄和 1/2" NPT 外螺纹入口。通过 ASME A112.18.1/CSA B125.1、NSF 61-Section 9 和 NSF 372 认证。符合 2019 DOE PRSV - Class II 标准。

最大压力: Pressure Max: 125 psi (8.62 bar)
最小压力: Pressure Min: 20 psi (1.38 bar)
喷雾阀流量: Spray Valve Flow: 1.15 GPM (4.35 L/min)
最高温度: Temperature Max: 140 F (60℃)
最低温度: Temperature Min: 40 F (4.44℃)

特点: 带角度的喷阀
卷盘材质: 镀铬
材质: 黄铜
最大压力: Pressure Max: 125 psi (8.62 bar)
最小压力: Pressure Min: 20 psi (1.38 bar)
喷阀: B-0107（1.15 加仑/分钟） (4.35 L/min)
喷雾阀流量: Spray Valve Flow: 1.15 GPM (4.35 L/min)
最高温度: Temperature Max: 140 F (60℃)
最低温度: Temperature Min: 40 F (4.44℃)

1.15 加仑/分斜向喷雾阀
1/2" NPT 外螺纹入口
96" 柔性不锈钢软管，带灰色耐热手柄和固定环
材料抛光镀铬黄铜机身和不锈钢软管

ASME A112.18.1 / CSA B125.1
ASTM F2324
California Energy Commission CEC
Low Lead Content (0.25% Max)
NSF/ANSI 372 (Lead Content)
NSF/ANSI/CAN 61 Q≤1

Box Dimensions: 3.75 x 10.25 x 15.44
Weight: 4.50 lbs (2.04 kg)
UPC: 671262664400

EPAct2005 (Public Law 109-58)

EPAct2005 (Public Law 109-58)

EPAct2005 (Public Law 109-58)
Country Of Origin: USA
California Prop #65 Warning

California Prop #65 Warning

WARNING

California Proposition 65

WARNING: This product can expose you to chemicals including Lead, Chromium (hexavalent compounds) and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm.

For more information, please go to www.P65Warnings.ca.gov.

Related Videos

Related Literature

下载

替换零件部件爆炸

B-0107-035
带 35 度角喷射面的喷射阀（1.15 GPM / 7.5 Oz-f@60 PSI）点击查看详情
010476-45
软管和喷雾阀 #27 洗衣机点击查看详情
B-0096-H
软管，96" 柔性不锈钢（灰色手柄）点击查看详情
000907-45
喷雾阀压紧环点击查看详情
055A
1/2"NPT 外螺纹 x 3/4-14UN 外螺纹适配器点击查看详情
