B-0123-V-BC: EasyInstall 预冲洗，弹簧式，底座安装，6" 壁挂式，B-0107-C 和 B-0970-FEZ

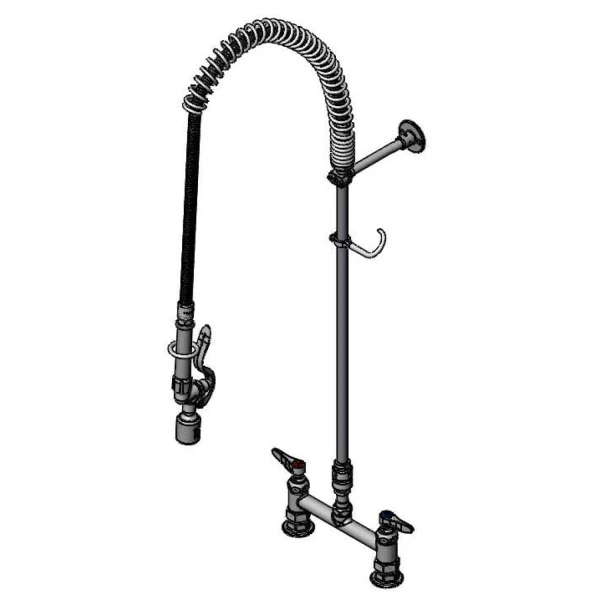

Name: EasyInstall Pre-Rinse, Spring Action, Deck Mount Base, 6" Wall Bkt, B-0107-C & B-0970-FEZ
Brand: T&S Brass
Price: 870.50 USD
Availability: InStock

分享本页

8" 带抛光镀铬黄铜龙头主体、真空断路器、24" 立管、44" 带耐热手柄的柔性不锈钢软管、0.65 GPM 低流量喷淋阀、带弹簧止回的压缩阀芯、杠杆式手柄、6" 可调节壁式支架、1/2" NPT 内螺纹入口、喷淋阀支架和顶置弹簧。通过 ASME A112.18.1/CSA B125.1、NSF 61-Section 9、NSF 372 和 CSA B64.8 认证。符合 2019 DOE PRSV - I 级标准。

最大压力: Pressure Max: 125 psi (8.62 bar)
最小压力: Pressure Min: 20 psi (1.38 bar)
喷雾阀流量: Spray Valve Flow: 0.65 GPM (2.46 L/min)
最高温度: Temperature Max: 140 F (60℃)
最低温度: Temperature Min: 40 F (4.44℃)

B-0425-KIT

Install Kit
List Price: $39.90

See full details

本体: 8 英寸中心 (203.2 mm)
本体式样: 台式
阀芯类别: 1/4 圈压缩
特点: 6 in Wall Bracket (152.4 mm)
特点: 带真空断流器
特点: 春季检查
手柄: 一字
入口: 1/2 in NPT Female
入口: 可调间距
材质: 黄铜
最大压力: Pressure Max: 125 psi (8.62 bar)
最小压力: Pressure Min: 20 psi (1.38 bar)
喷阀: B-0107-C（0.65 加仑/分钟） (2.46 L/min)
喷雾阀流量: Spray Valve Flow: 0.65 GPM (2.46 L/min)
最高温度: Temperature Max: 140 F (60℃)
最低温度: Temperature Min: 40 F (4.44℃)

2019 DOE PRSV-Class I
ASME A112.18.1 / CSA B125.1
ASTM F2324
California Energy Commission CEC
Low Lead Content (0.25% Max)
NSF/ANSI 372 (Lead Content)
NSF/ANSI/CAN 61 Q≤1

Box Dimensions: 3.88 x 12.00 x 27.50
Weight: 12.72 lbs (5.77 kg)
UPC: 671262736206

EPAct2005 (Public Law 109-58)

EPAct2005 (Public Law 109-58)

EPAct2005 (Public Law 109-58)
CSA B64.8

CSA B64.8

CSA B64.8
